Medical Equipment 45C 6S 22.2V 2200mAh High Discharge LiPo Battery Pack

AllrunBattery
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

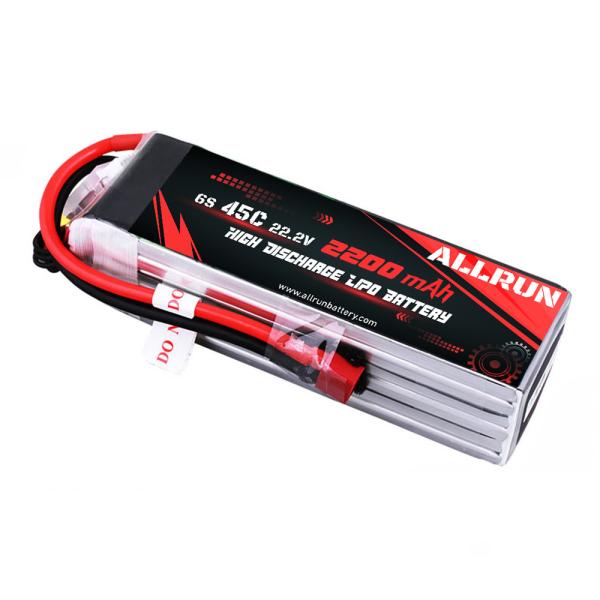

Medical Equipment 45C 6S 22.2V 2200mAh High Discharge LiPo Battery Pack

  • 1
  • 2

Brand Name : AllrunBattery

Model Number : 8034106

MOQ : MOQ: 100PCS

Price : Negotiable

Payment Terms : T/T, PayPal, Western Union.

Supply Ability : 40 million pieces LiPo battery cells per year.

Delivery Time : 5~8 working days when cells in stocks.

Packaging Details : Factory standard package, or on demand.

Battery Type : High Discharge LiPo Battery

Voltage : 22.2V

Capacity : 2200mAh

Pack size : 49*34*106mm(T*W*L)

Continuous Discharge C-rate : 45C

Max Continuouswork current : 99A

Contact Now

Allrun 45C 2200mAh 6S 22.2V High Discharge LiPo Battery Pack

Welcome to Allrun high discharge(C-rate) lipo battery section, they are widely used in various fields, such as model aircraft ( RC ), medical equipment, drones for aerial and agricultural plant protection purposes, emergency power supplies, power tools, and so on.

The high rate discharge lithium polymer battery represents the charge and discharge capacity of lithium polymer batteries relative to the standard rate discharge lithium polymer battery. A lithium-polymer battery is normally measured using a "C" value to represent its charge and discharge current ratio. Batteries with a C-rate number higher than 1 are considered high-rate batteries. The larger the C-rate number of a li-polymer battery, the higher the rate of the li-polymer battery.

Datasheet

Item

Allrun 45C 2200mAh 6S 22.2V High Discharge LiPo Battery Pack

Battery Type Rechargeable LiPo Battery
Capacity 22000mAh
Normal Voltage 22.2V
Thickness 49mm MAX
Width 34mm MAX
Length 106mm MAX
Charge Cut-off Voltage 25.2V
Discharge Cut-off Voltage 18.0V
Standard Charge Current 1100mA (0.5C)
Max Charge Current 2200mA (1C)
Max Continuous Discharge Current 99A (45C)
Pulse Discharge Current 198A (for 2 seconds)
Connector TBD

Safety Notes of High C-rate LiPo Battery

  1. Avoid using lead-acid, NiCd, or NiMH chargers.
  2. Be careful not to abuse these batteries, such as shorting, bending, crushing, or puncturing them.
  3. Charge and use should never be left unattended.
  4. Always inspect batteries and surrounding circuitry constantly for any damage, loose wiring, or the possibility of short circuits.
  5. Do not use or leave the battery at very high-temperature conditions(for example, strong direct sunlight or a vehicle in extremely hot conditions). Otherwise, it can overheat or fire, or its performance will degenerate and its service life will be decreased.
